Technical Details

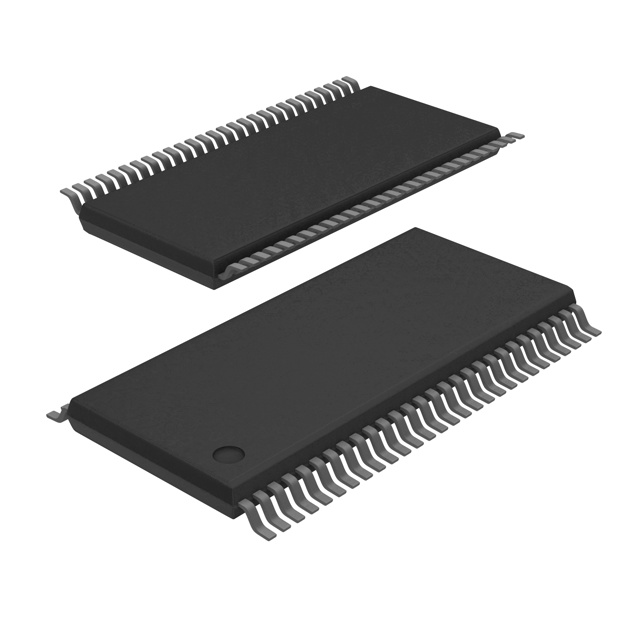

• Package / Case 56-TFSOP (0.240", 6.10mm Width)
• Output Type Tri-State, Non-Inverted
• Mounting Type Surface Mount
• Number of Elements 2
• Function Master Reset
• Type D-Type
• Operating Temperature -40°C ~ 85°C (TA)
• Voltage - Supply 2.3V ~ 2.7V, 3V ~ 3.6V
• Current - Quiescent (Iq) 100 µA
• Current - Output High, Low 8mA, 24mA; 32mA, 64mA
• Trigger Type Positive Edge
• Clock Frequency 250 MHz
• Input Capacitance 3 pF
• Supplier Device Package 56-TSSOP
• Max Propagation Delay @ V, Max CL 3.1ns @ 3.3V, 50pF
• Number of Bits per Element 9
